Solar Water Pumping Systems 1HP to 20HP

A solar panel (also called a photovoltaic panel or PV module) is a device that converts sunlight into electricity using the photovoltaic effect. Its made up of many solar cells (usually silicon-based) that absorb photons from sunlight, releasing electrons and generating electric current.
Heres a quick breakdown:
Types of Solar Panels
Monocrystalline Made from a single crystal of silicon, high efficiency, long lifespan, but more expensive.
Polycrystalline Made from multiple silicon fragments, cheaper but slightly less efficient.
Thin-film Lightweight and flexible, but lower efficiency and shorter lifespan.
How It Works
Sunlight hits the solar cells.
The cells generate direct current (DC) electricity.
An inverter converts DC into alternating current (AC), which powers homes and businesses.
Excess electricity can be stored in batteries or fed back into the grid.
Benefits
Renewable, clean energy source.
Reduces electricity bills.
Low maintenance and long-lasting (2030 years).
Limitations
Initial installation cost is high.
Efficiency depends on sunlight availability (weather, location, shading).
Energy storage (batteries) adds extra cost.
Solar panels are widely used for homes, businesses, solar farms, satellites, calculators, and even vehicles.
Would you like me to make you a diagram showing how a solar panel works?
You said:
ChatGPT said:

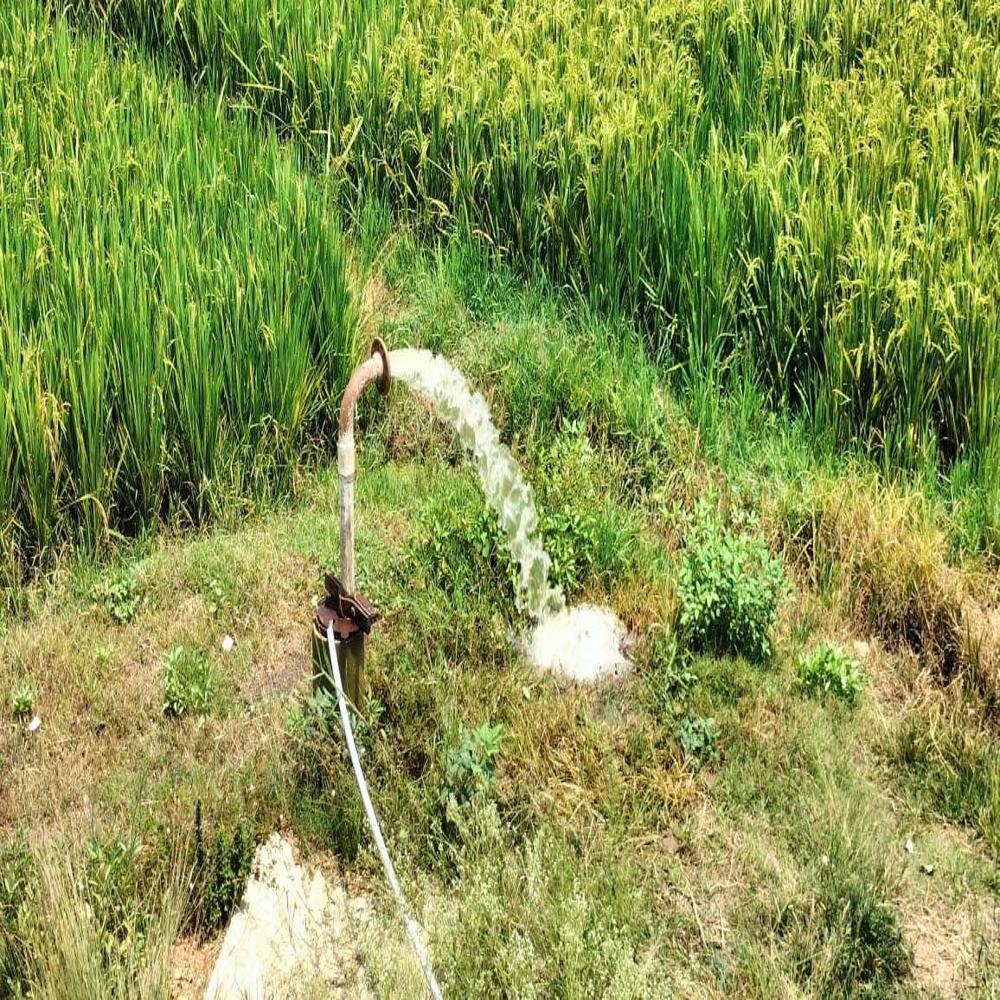

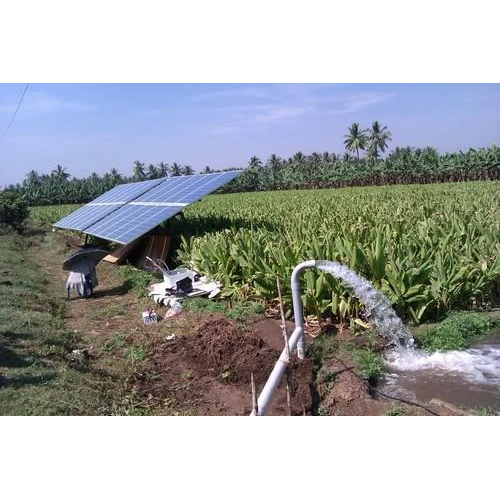

A Solar Water Pumping System is a setup that uses solar energy to pump water from wells, rivers, lakes, or reservoirs without relying on grid electricity or diesel generators. Its widely used in agriculture, livestock watering, and rural/remote water supply.

---

Main Components
Solar Panels Capture sunlight and generate electricity.
Pump Controller (Inverter/Drive) Regulates power, protects the pump, and ensures smooth operation.
Water Pump Can be:
DC Pump (directly powered by solar panels, simpler, common for small systems).
AC Pump (requires an inverter, used in larger systems).
Surface Pump (used when water is close to the surface, 7m depth).
Submersible Pump (used for deep wells, up to 200m or more).
Storage Tank Stores pumped water for use when sunlight is not available.
(Optional) Battery Backup Stores electricity if continuous pumping is required (though usually, tanks are preferred instead of batteries).

---

How It Works
Sunlight hits the solar panels, producing electricity.
The controller regulates this power and drives the pump.
The pump lifts water from the source.
Water is stored in a tank or used directly for irrigation, livestock, or drinking water.

---

Advantages
No fuel cost (runs entirely on solar).
Low maintenance and long lifespan.
Environmentally friendly zero emissions.
Ideal for remote or off-grid areas.
Can operate automatically with sunlight.

FAQs of Solar Water Pumping Systems 1HP to 20HP:
