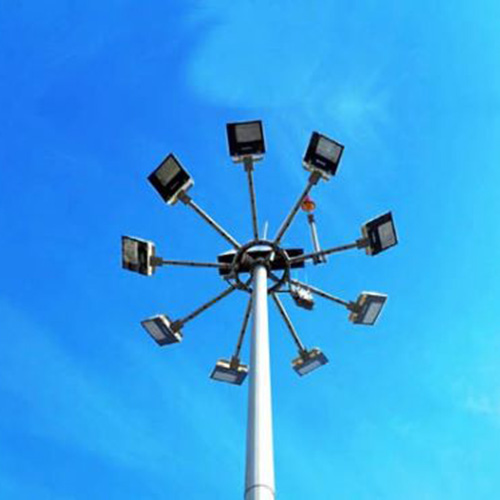

High Mast (150wpx4nos TO 200wx8nos )

About High Mast (150wpx4nos TO 200wx8nos )

A High Mast System is a type of lighting system where lights are mounted on tall poles (usually 12 to 50 meters high) to illuminate large outdoor areas. These systems are commonly used in:

• Highways and junctions
  Airports
  Ports and docks
  Stadiums and sports complexes
  Industrial areas
  Railway yards
  Public spaces like parks or large parking areas

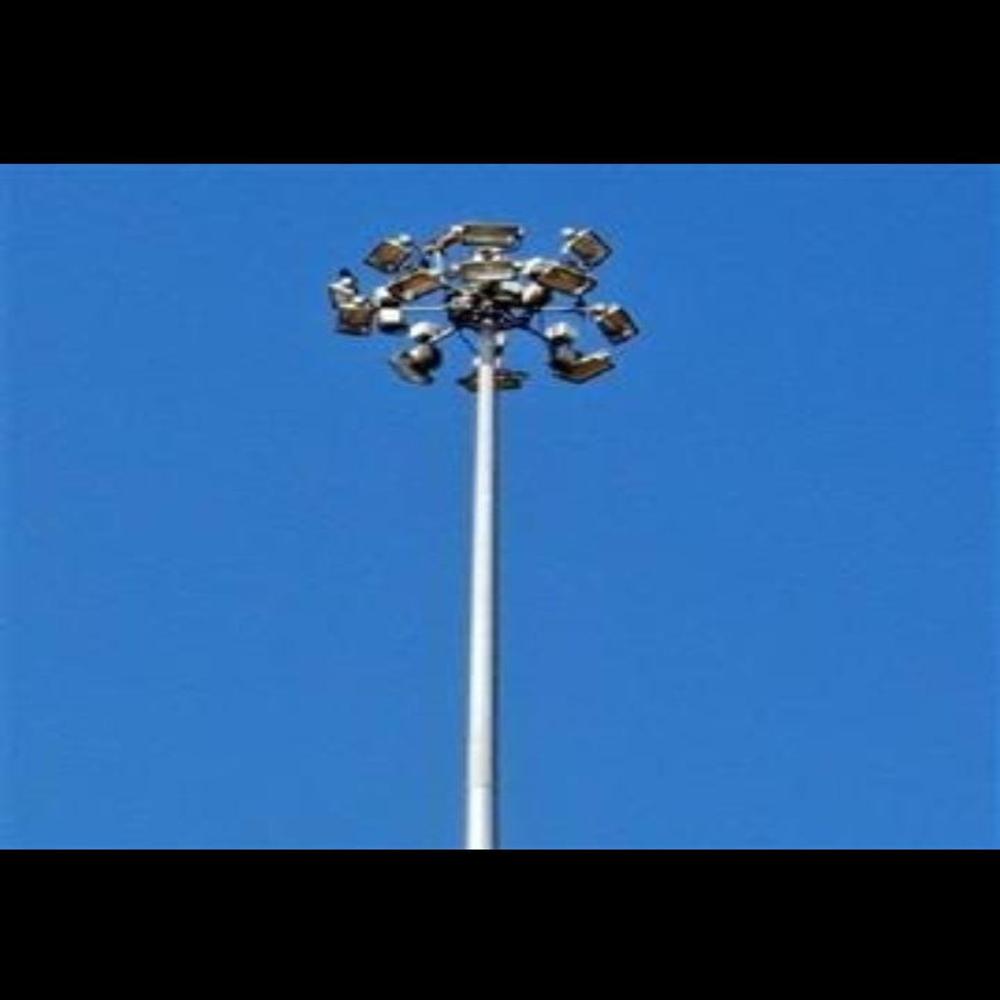

1. High Mast Pole:

   • Height: Typically ranges from 12 to 50 meters

   • Material: Galvanized steel or other corrosion-resistant alloys

   • Structure: Often polygonal (8 or 12-sided) for strength and wind resistance

2. Luminaries (Lights):

   • Generally LED floodlights or high-intensity discharge (HID) lamps

   • Mounted on a circular ring or bracket at the top

   • Typical configuration: 616 fixtures depending on pole height and coverage needed

3. Head Frame / Luminary Ring:

   • The ring on which the lights are mounted

   • May include lightning arrestors or aviation warning lights

4. Winch and Pulley System:

   • A motorized hoisting system used to lower the ring of lights for maintenance

   • Includes stainless steel wire ropes and safety locks

5. Control Panel:

   • Houses the electrical components: contactors, timer, MCBs, control relays, etc.

   • Can be integrated with automatic timers, light sensors, or remote monitoring
